RTG Mid-Efficiency Tankless Water Heaters
Rheem uses sophisticated technology to create the most efficient whole home tankless water heating solution available from Rheem. The popularity of luxury bathrooms and oversize tubs is growing' and so is the demand for large volumes of low-cost hot water.
Rheem’s mid-efficiency tankless design offers unparalleled convenience and low-cost operation.
- 84% energy with all copper heat exchanger
- 'b>Intelligent electronic controls designed to increase energy efficiency and safety
- Self-diagnostic system for easy installation and service
- Digtal display shows temperature setting and maintenance codes
- 3"/5" concentric vent system (interior units) with Integrated condensate collector
- Hot start programming helps minimize fluctuation in water temperature
- Guardian overheat film wrap (OFW)
- EZ-Link cable available for higher demand applications to connect two tankless units to operate as one
- High-altitude capability up to 9'840 ft. elevation above sea level
- Digital remote control and 10 ft. of thermostat wire included
MODEL | Configuration | Max MBtuH | Min MBtuH | Flow Rate GPM | UEF | Temp. Range | Dimensions HxWxD | Weight Lbs. |
---|

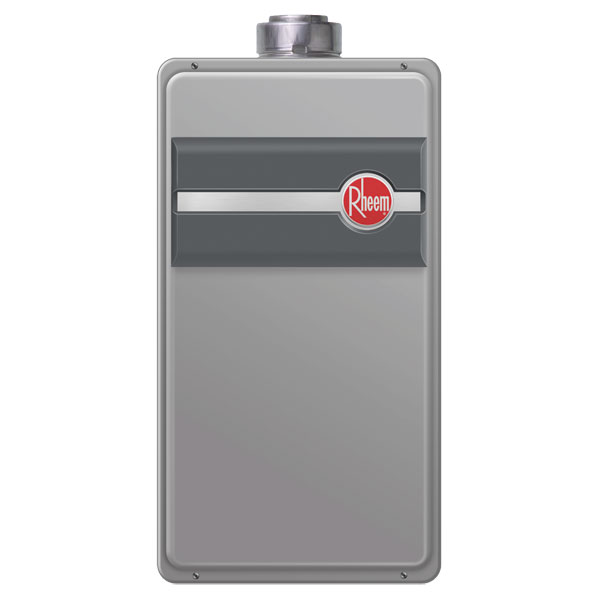

RTG-95DV | Interior | 199.9 | 11.0 | 8.40 | 0.82 | 85-140 | 25.6x13.9x9.9 | 54 |

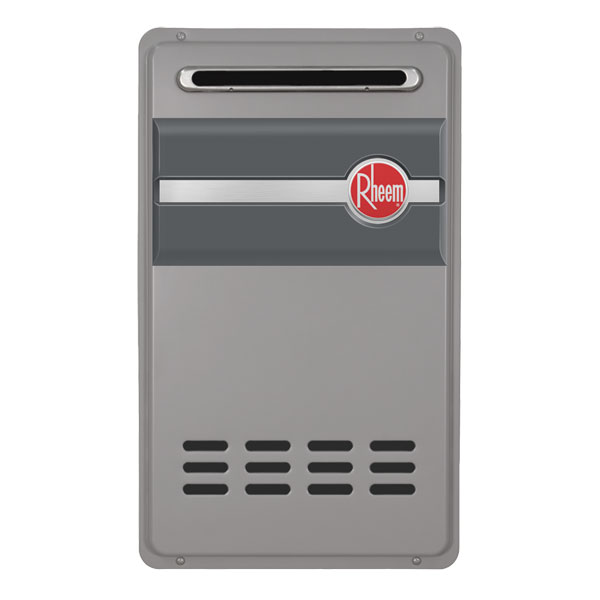

RTG-95X | Exterior | 199.9 | 11.0 | 8.40 | 0.82 | 84-140 | 25.6x13.9x8.9 | 54 |
RTG-84DV | Interior | 180.0 | 11.0 | 8.40 | 0.82 | 85-140 | 25.6x13.9x9.9 | 54 |
RTG-84X | Exterior | 180.0 | 11.0 | 8.40 | 0.82 | 85-140 | 25.6x13.9x8.9 | 54 |
RTG-64DV | Interior | 150.0 | 11.0 | 8.40 | 0.82 | 85-140 | 25.6x13.9x9.9 | 54 |
RTG-64X | Exterior | 150.0 | 11.0 | 8.40 | 0.82 | 85-140 | 25.6x13.9x8.9 | 54 |
Warranty Information
- All Parts
for 60 months -
- Heat Exchanger for 144 months -
- Limited Labor for 12 months -
66-24908.pdf (Specification Sheet, Technical Information)
