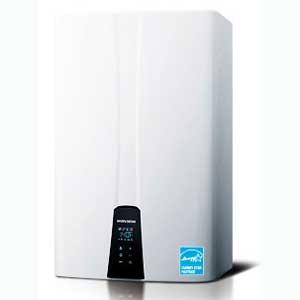

NPE Series Premium Condensing Tankless Gas Heater
NPE-A Advanced high-efficiency tankless water heater technology for residential and commercial applications. Exclusive ComfortFlow technology with internal buffer tank and recirculation pump maintains a steady stream of heated water to eliminate cold water sandwiches and issues of minimum flow rates.
NPE-S Standard ultra condensing technology without ComfortFlow technology.
- Ultra Condensing Efficiency
- Two Stainless Steel Heat Exchangers - Provides longer life expectancy as they are highly resistant to corrosion and erosion compared to copper heat exchangers.
- Low NOx Emissions (≤ 20ppm) - New metal fiber burner is designed to deliver a consistent air/gas mixture improving combustion efficiency.
- 2 in. PVC, CPVC, Polyprophylene Venting Up To 60 ft.
- Utilizes Existing 1/2 in. Gas Line - The negative pressure gas valve and fan with dual venturi operation allows for better adaptability to low gas pressure applications.
- Field Convertable: NPE models allow for easy convertibility from NG to LP.
- Less Water Pressure Drop - Simple modular for water path minimizes water pressure drop.
- Front Panel Command Center - with self-diagnostics.
| MODEL | Configuration | Max
MBtuH | Min
MBtuH | Flow Rate
GPM | UEF | Temp.
Range | Dimensions
HxWxD | Weight
Lbs. |
|---|
| NPE-180S | | 16.0 | 0.0 | 3.80 | 1.00 | | 27.4x17.3x11.4 | 67 |
| NPE-210S | | 19.9 | 0.0 | 4.60 | 1.00 | | 27.4x17.3x13.2 | 75 |
| NPE-240S | | 19.9 | 0.0 | 5.10 | 1.00 | | 27.4x17.3x13.2 | 75 |
| NPE-180A | | 16.0 | 0.0 | 3.80 | 1.00 | | 27.4x17.3x11.4 | 75 |
| NPE-210A | | 19.9 | 0.0 | 4.60 | 1.00 | | 27.4x17.3x13.2 | 82 |
| NPE-240A | | 19.9 | 0.0 | 5.10 | 1.00 | | 27.4x17.3x13.2 | 82 |
Warranty Information
- Heat Exchanger for 180 months -
- All Parts
for 60 months -
- Limited Labor for 12 months -
(Owners Manual, Customer Information, In the Box)
